ANTAIRA PRODUCTS
Managed Switch
Industrial Temperature -10 to 70C

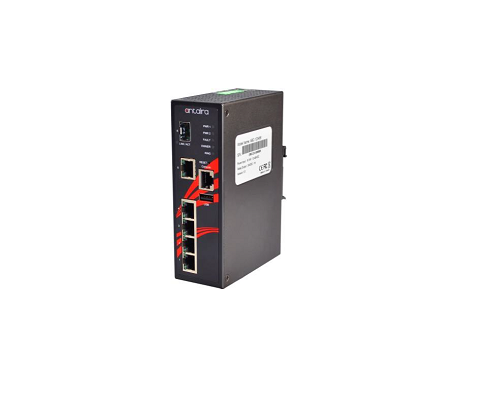

6-Port Industrial Gigabit PoE+ Managed Ethernet Switch, w/4*10/100Tx (30W/Port),
1*Gigabit Combo (2*10/100/1000TX RJ45, or 1*100/1000 SFP Slots)
INTERFACE
- 4*10/100Tx IEEE 802.3at/af Compliant with 30W/Port
- 1*Gigabit Combo (1*10/100/1000Tx RJ45)
- 1*100/1000 SFP Slots)
TECHNOLOGY
- IEEE 802.3 10Tx Ethernet
- IEEE 802.3u 100Tx Fast Ethernet
- IEEE 802.3ab 1000Tx Gigabit Ethernet
- IEEE 802.3z Gigabit Fibre
- IEEE 802.3x Flow Control for Full Duplex
- IEEE 802.3ad for Port Trunk with LACP
- IEEE 802.3at/af PoE (Power-over-Ethernet)
- IEEE 802.1d STP (Spanning Tree Protocol)
STANDARDS
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1x for Network Authentication
IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
PROTOCOL
-
IGMPv1/v2, SNMPv1/v2c/v3, TFTP,
SNTP, SMTP, RMON, HTTP, HTTPS,
Telnet, Syslog, DHCP Option 66/67/82,
SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
ARCHITECTURE
- Back-Plane (Switching Fabric): 6.0Gbps
- Configuration: Web Console, Telnet, CLI
- Processing Type: Store and Forward
- Flow Control: IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Configuration: Web Console, Telnet, CLI Command
- Transfer Rate:
- 14,880pps for 10Base-T Ethernet
- 148,800pps for 100Base-T Fast Ethernet
- 1,488,000pps for Gigabit Ethernet
- Packet Buffer: 1 Mbits
- MAC table 8K
- VLAN Group: 1 ~ 4094
- IGMP Group: Up to 256 Groups
ENVIRONMENTAL LIMITS AND WARRANTY
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C,
- EOT: -40° to 75° C
- 5-Year Warranty
Data Sheet
Download
Managed Switch
Industrial Extended Temperature -40 to 75C
6-Port Industrial Gigabit PoE+ Managed Ethernet Switch (Extended Temperature -40 to 75C), w/4*10/100Tx (30W/Port),
1*Gigabit Combo (2*10/100/1000TX RJ45, or 1*100/1000 SFP Slots)
INTERFACE
- 4*10/100Tx IEEE 802.3at/af Compliant with 30W/Port
- 1*Gigabit Combo (1*10/100/1000Tx RJ45)
- 1*100/1000 SFP Slots)
TECHNOLOGY
- IEEE 802.3 10Tx Ethernet
- IEEE 802.3u 100Tx Fast Ethernet
- IEEE 802.3ab 1000Tx Gigabit Ethernet
- IEEE 802.3z Gigabit Fibre
- IEEE 802.3x Flow Control for Full Duplex
- IEEE 802.3ad for Port Trunk with LACP
- IEEE 802.3at/af PoE (Power-over-Ethernet)
- IEEE 802.1d STP (Spanning Tree Protocol)
STANDARDS
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1x for Network Authentication
IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
PROTOCOL
-
IGMPv1/v2, SNMPv1/v2c/v3, TFTP,
SNTP, SMTP, RMON, HTTP, HTTPS,
Telnet, Syslog, DHCP Option 66/67/82,
SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
ARCHITECTURE
- Back-Plane (Switching Fabric): 6.0Gbps
- Configuration: Web Console, Telnet, CLI
- Processing Type: Store and Forward
- Flow Control: IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Configuration: Web Console, Telnet, CLI Command
- Transfer Rate:
- 14,880pps for 10Base-T Ethernet
- 148,800pps for 100Base-T Fast Ethernet
- 1,488,000pps for Gigabit Ethernet
- Packet Buffer: 1 Mbits
- MAC table 8K
- VLAN Group: 1 ~ 4094
- IGMP Group: Up to 256 Groups
ENVIRONMENTAL LIMITS AND WARRANTY
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C,
- EOT: -40° to 75° C
- 5-Year Warranty
Data Sheet
Download
Managed Switch
Industrial POE Low Input Voltage 12-36V
6-Port Industrial Gigabit PoE+ Managed Ethernet Switch (Low Input Voltage), w/4*10/100Tx (30W/Port),
1*Gigabit Combo (2*10/100/1000TX RJ45, or 1*100/1000 SFP Slots)
INTERFACE
- 4*10/100Tx IEEE 802.3at/af Compliant with 30W/Port
- 1*Gigabit Combo (1*10/100/1000Tx RJ45)
- Or 1*100/1000 SFP Slots
TECHNOLOGY
- IEEE 802.3 10Tx Ethernet
- IEEE 802.3u 100Tx Fast Ethernet
- IEEE 802.3ab 1000Tx Gigabit Ethernet
- IEEE 802.3z Gigabit Fibre
- IEEE 802.3x Flow Control for Full Duplex
- IEEE 802.3ad for Port Trunk with LACP
- IEEE 802.3at/af PoE (Power-over-Ethernet)
- IEEE 802.1d STP (Spanning Tree Protocol)
STANDARDS
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1x for Network Authentication
IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
PROTOCOL
-
IGMPv1/v2, SNMPv1/v2c/v3, TFTP,
SNTP, SMTP, RMON, HTTP, HTTPS,
Telnet, Syslog, DHCP Option 66/67/82,
SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
ARCHITECTURE
- Back-Plane (Switching Fabric): 6.0Gbps
- Configuration: Web Console, Telnet, CLI
- Processing Type: Store and Forward
- Flow Control: IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Configuration: Web Console, Telnet, CLI Command
- Transfer Rate:
- 14,880pps for 10Base-T Ethernet
- 148,800pps for 100Base-T Fast Ethernet
- 1,488,000pps for Gigabit Ethernet
- Packet Buffer: 1 Mbits
- MAC table 8K
- VLAN Group: 1 ~ 4094
- IGMP Group: Up to 256 Groups
ENVIRONMENTAL LIMITS AND WARRANTY
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C,
- EOT: -40° to 75° C
- 5-Year Warranty
Data Sheet
Download
Managed Switch
Industrial Temperature -10 to 70C

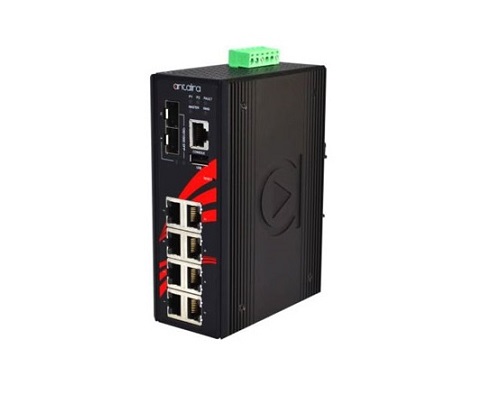

10-Port Industrial Gigabit PoE+ Managed Ethernet Switches, w/8*10/100Tx (30W/Port),
2*Gigabit Combo (2*10/100/1000TX RJ45, or 2*100/1000 SFP Slots)
INTERFACE
- 8*10/100Tx IEEE 802.3at/af Compliant with 30W/Port
- 2*Gigabit Combo (2*10/100/1000Tx RJ45)
- Or 2*100/1000 SFP Slots
TECHNOLOGY
- IEEE 802.3 10Tx Ethernet
- IEEE 802.3u 100Tx Fast Ethernet
- IEEE 802.3ab 1000Tx Gigabit Ethernet
- IEEE 802.3z Gigabit Fibre
- IEEE 802.3x Flow Control for Full Duplex
- IEEE 802.3ad for Port Trunk with LACP
- IEEE 802.3at/af PoE (Power-over-Ethernet)
- IEEE 802.1d STP (Spanning Tree Protocol)
STANDARDS
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1x for Network Authentication
IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
PROTOCOL
-
IGMPv1/v2, SNMPv1/v2c/v3, TFTP,
SNTP, SMTP, RMON, HTTP, HTTPS,
Telnet, Syslog, DHCP Option 66/67/82,
SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
ARCHITECTURE
- Back-Plane (Switching Fabric): 10.0Gbps
- Configuration: Web Console, Telnet, CLI
- Processing Type: Store and Forward
- Flow Control: IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Configuration: Web Console, Telnet, CLI Command
- Transfer Rate:
- 14,880pps for 10Base-T Ethernet
- 148,800pps for 100Base-T Fast Ethernet
- 1,488,000pps for Gigabit Ethernet
- Packet Buffer: 4 Mbits
- MAC table 8K
- VLAN Group: 1 ~ 4094
- IGMP Group: Up to 256 Groups
ENVIRONMENTAL LIMITS AND WARRANTY
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C,
- EOT: -40° to 75° C
- 5-Year Warranty
Data Sheet
Download
Managed Switch
Industrial Extended Temperature -40 to 75C
10-Port Industrial Gigabit PoE+ Managed Ethernet Switches, w/8*10/100Tx (30W/Port),
2*Gigabit Combo (2*10/100/1000TX RJ45, or 2*100/1000 SFP Slots)
INTERFACE
- 8*10/100Tx IEEE 802.3at/af Compliant with 30W/Port
- 2*Gigabit Combo (2*10/100/1000Tx RJ45)
- Or 2*100/1000 SFP Slots
TECHNOLOGY
- IEEE 802.3 10Tx Ethernet
- IEEE 802.3u 100Tx Fast Ethernet
- IEEE 802.3ab 1000Tx Gigabit Ethernet
- IEEE 802.3z Gigabit Fibre
- IEEE 802.3x Flow Control for Full Duplex
- IEEE 802.3ad for Port Trunk with LACP
- IEEE 802.3at/af PoE (Power-over-Ethernet)
- IEEE 802.1d STP (Spanning Tree Protocol)
STANDARDS
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1x for Network Authentication
IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
PROTOCOL
-
IGMPv1/v2, SNMPv1/v2c/v3, TFTP,
SNTP, SMTP, RMON, HTTP, HTTPS,
Telnet, Syslog, DHCP Option 66/67/82,
SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
ARCHITECTURE
- Back-Plane (Switching Fabric): 10.0Gbps
- Configuration: Web Console, Telnet, CLI
- Processing Type: Store and Forward
- Flow Control: IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Configuration: Web Console, Telnet, CLI Command
- Transfer Rate:
- 14,880pps for 10Base-T Ethernet
- 148,800pps for 100Base-T Fast Ethernet
- 1,488,000pps for Gigabit Ethernet
- Packet Buffer: 4 Mbits
- MAC table 8K
- VLAN Group: 1 ~ 4094
- IGMP Group: Up to 256 Groups
ENVIRONMENTAL LIMITS AND WARRANTY
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C,
- EOT: -40° to 75° C
- 5-Year Warranty
Data Sheet
Download
Managed Switch
Industrial POE Low Input Voltage 12-36V
10-Port Industrial Gigabit PoE+ Managed Ethernet Switches, w/8*10/100Tx (30W/Port),
2*Gigabit Combo (2*10/100/1000TX RJ45, or 2*100/1000 SFP Slots)
INTERFACE
- 8*10/100Tx IEEE 802.3at/af Compliant with 30W/Port
- 2*Gigabit Combo (2*10/100/1000Tx RJ45)
- Or 2*100/1000 SFP Slots
TECHNOLOGY
- IEEE 802.3 10Tx Ethernet
- IEEE 802.3u 100Tx Fast Ethernet
- IEEE 802.3ab 1000Tx Gigabit Ethernet
- IEEE 802.3z Gigabit Fibre
- IEEE 802.3x Flow Control for Full Duplex
- IEEE 802.3ad for Port Trunk with LACP
- IEEE 802.3at/af PoE (Power-over-Ethernet)
- IEEE 802.1d STP (Spanning Tree Protocol)
STANDARDS
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1x for Network Authentication
IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
PROTOCOL
-
IGMPv1/v2, SNMPv1/v2c/v3, TFTP,
SNTP, SMTP, RMON, HTTP, HTTPS,
Telnet, Syslog, DHCP Option 66/67/82,
SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
ARCHITECTURE
- Back-Plane (Switching Fabric): 10.0Gbps
- Configuration: Web Console, Telnet, CLI
- Processing Type: Store and Forward
- Flow Control: IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Configuration: Web Console, Telnet, CLI Command
- Transfer Rate:
- 14,880pps for 10Base-T Ethernet
- 148,800pps for 100Base-T Fast Ethernet
- 1,488,000pps for Gigabit Ethernet
- Packet Buffer: 4 Mbits
- MAC table 8K
- VLAN Group: 1 ~ 4094
- IGMP Group: Up to 256 Groups
ENVIRONMENTAL LIMITS AND WARRANTY
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C,
- EOT: -40° to 75° C
- 5-Year Warranty
Data Sheet
Download
Managed Switch
12-Port Industrial Gigabit PoE+ Managed Ethernet Switches, w/8*10/100/1000Tx (30W/Port), 4*100/1000Fx, 48~55VDC Power Input
INTERFACE
- 8*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port
- 4*100/1000Fx SFP Fibre Slots
TECHNOLOGY
- IEEE 802.3 10Tx Ethernet
- IEEE 802.3u 100Tx Fast Ethernet
- IEEE 802.3ab 1000Tx Gigabit Ethernet
- IEEE 802.3z Gigabit Fibre
- IEEE 802.3x Flow Control for Full Duplex
- IEEE 802.3ad for Port Trunk with LACP
- IEEE 802.3at/af PoE (Power-over-Ethernet)
- IEEE 802.1d STP (Spanning Tree Protocol)
STANDARDS
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1x for Network Authentication
IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
PROTOCOL
-
IGMPv1/v2, SNMPv1/v2c/v3, TFTP,
SNTP, SMTP, RMON, HTTP, HTTPS,
Telnet, Syslog, DHCP Option 66/67/82,
SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
ARCHITECTURE
- Back-Plane (Switching Fabric): 10.0Gbps
- Configuration: Web Console, Telnet, CLI
- Processing Type: Store and Forward
- Flow Control: IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Configuration: Web Console, Telnet, CLI Command
- Transfer Rate:
- 14,880pps for 10Base-T Ethernet
- 148,800pps for 100Base-T Fast Ethernet
- 1,488,000pps for Gigabit Ethernet
- Packet Buffer: 4 Mbits
- MAC table 8K
- VLAN Group: 1 ~ 4094
- IGMP Group: Up to 256 Groups
ENVIRONMENTAL LIMITS AND WARRANTY
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C,
- EOT: -40° to 75° C
- 5-Year Warranty
Data Sheet
Download
Un-Managed Switch

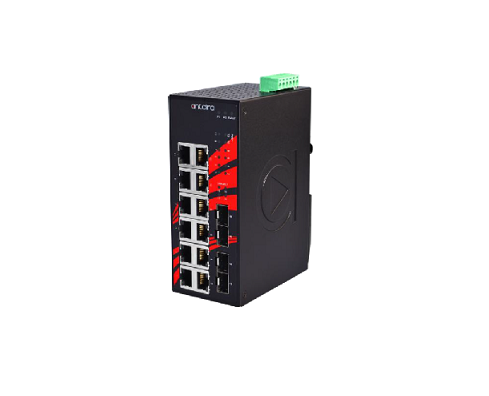

16-Port Industrial Gigabit PoE+ Managed Ethernet Switches, w/12*10/100/1000Tx (30W/Port), 4*100/1000Fx, 48~55VDC Power Input
INTERFACE
- 12*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port
- 4*100/1000Fx SFP Fibre Slots
TECHNOLOGY
- IEEE 802.3 10BaseTx Ethernet
- IEEE 802.3u 100BaseTx Fast Ethernet
- IEEE 802.3ab 1000BaseTx
- IEEE 802.3z Gigabit Fibre
- IEEE 802.3af/at Power over Ethernet
- Processing type: Store and Forward
- Protocol: CSMA/CD
- Flow Control: IEEE 802.3x back pressure flow control
ARCHITECTURE
- Switch Architecture: Back-Plane (Non-Block Switching Fabric)
- Transfer Rate:
- 14,880pps for 10Base-T Ethernet
- 148,800pps for 100Base-T Fast Ethernet
- 1,488,000pps for Gigabit Ethernet
- Packet Buffer: 4 Mbits
- MAC table 8K
ADDITIONAL COMPLIANCE
- NEMA TS1/TS2 (ITS)
- EN50121-4 (Railway)
ENVIRONMENTAL LIMITS AND WARRANTY
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C,
- EOT: -40° to 75° C
- 5-Year Warranty
Data Sheet
Download
Unmanaged Switch

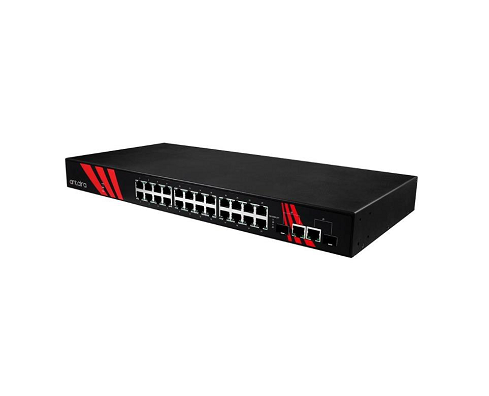

24*10/100/1000Tx RJ45 (w/24*PSE: 30W/Port) Non-Managed Industrial Rack Mount Switch
INTERFACE
- 24*10/100/1000Tx RJ45 (w/24*PSE: 30W/Port)
- 2*RJ45 Ports w/10/100/1000Tx Ethernet and 2*100/1000 SFP Slot
TECHNOLOGY
- IEEE 802.3 10BaseT Ethernet
- IEEE 802.3u 100BaseTX Fast Ethernet
- IEEE 802.3ab 1000BaseT
- IEEE 802.3z 1000Base-X Gigabit Fibre
- IEEE 802.3af/at Power over Ethernet
PROCESSING TYPE
- Store and Forward
PROTOCOL
- CSMA/CD
FLOW CONTROL
- IEEE 802.3x back pressure flow control
SWITCH PROPERTIES
- Back-Plane: Non-Blocking Switching Fabric
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
- Memory Buffer 4Mbits
- Jumbo Frame 9.6Kbytes
- Mac Table Size 8K
POWER SPECIFICATIONS
- INPUT 48~55VDC, Redundant Input
- Overload Protection: Present (Slow-Blown Fuse)
- Reverse Polarity Protection: Yes
- POE Power Output: 30 Watts max. per PoE port
- Power Consumption: 24 Watts for System
- Max POE Budget: 720 Watts
- Relay Contact: 24VDC, 1A resistive
REGULATORY APPROVALS
EMI
- FCC Part 15 Subpart B Class A, CE EN 55022 Class A
EMS
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
OTHERS
- Freefall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Green: RoHS Compliant
- Safety: UL 61010-1, 2-201 (Pending)
- Warranty: 5 Years
Data Sheet
Download

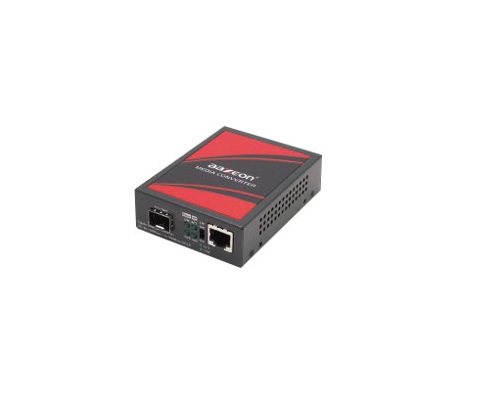

10/100/1000BaseT to 1000BaseX PoE+ SFP Gigabit Media Converter
- Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3at, 802.3af
- Supports PoE Power up to 30 Watts per Port
- Provides DC 52V Power over RJ-45 Ethernet Cable
- Mini-GBIC SFP Connector
- IEEE 802.3x Full-Duplex Flow-Control & Back-Pressure in Half-Duplex
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Mechanism
- Compacts Size for Easy Installation
Data Sheet
Download

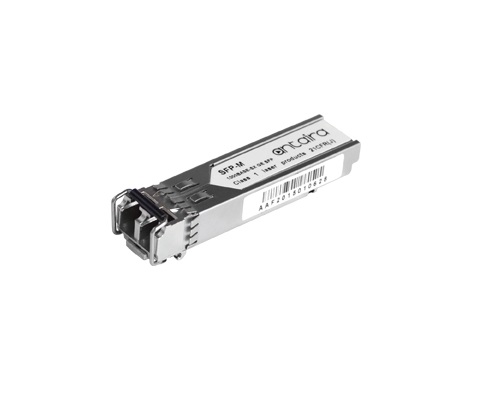

SFP, Duplex LC Connector, 850nm VCSEL for Multimode Fibre, RoHS Compliant
- 850nm VCSEL
- Data Rate: 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
- Duplex LC Connector
- Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps
- Compliance with ANSI specifications for Fibre Channel applications at 1.06 Gbps
- Eye Safety
- Designed to meet Laser Class 1, complies with EN60825-1
Data Sheet
Download

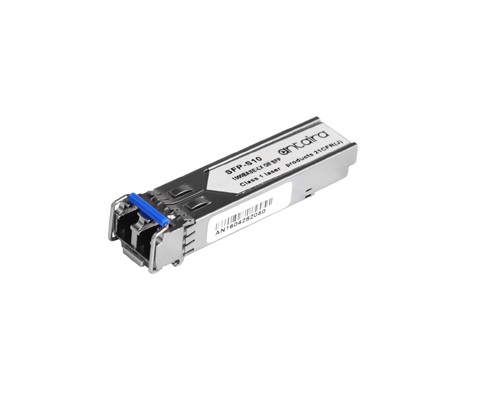

SFP, Duplex LC Connector, 1310nm FP LD for Single Mode Fibre, RoHS Compliant
- 1310nm FP LD
- Data Rate: 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
- Duplex LC Connector
- Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps
- Compliance with ANSI specifications for Fibre Channel applications at 1.06 Gbps
- Eye Safety
Data Sheet
Download
