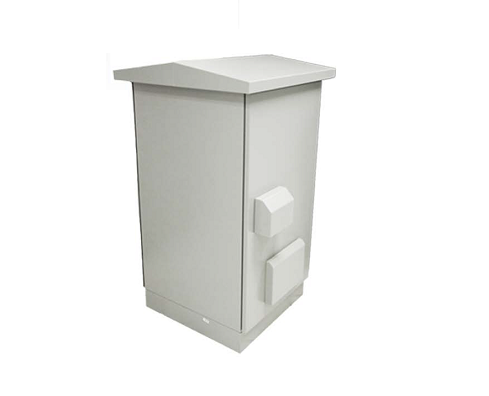

Weatherproof your valuable electronic equipment with our ventilated and standard outdoor cabinet

Ventilated

• Vented doors on the standard IP55 cabinet, draws air through washable filters via roof mounted fans and exhausts it through the insulated roof, preventing your equipment from overheating.
• Not only is this cabinet waterproof, but the additional filters make them virtually dust-proof.
• The cabinet comes complete with 4 x 19” mounting rails & plinth.
• Cabinets are manufactured from 2mm steel prior to powder coating in our modern facility.
• Cabinets come complete with 100mm high plinth and gland plate


  Standard

• Our Standard range of outdoor cabinets offer either 19” or chassis plate mounting options.
• Cabinets are manufactured from 2mm steel prior to powder coating in our modern facility.
• Cabinets come complete with 100mm high plinth and gland plat


600mm Wide Cabinet Dimensions
Code	U	Height	Depth	Weight
20U Models
FM-IP55V.6620.GRY	20	1070	600	76
FM-IP55V.6820.GRY	20	1070	800	95
FM-IP55V.6020.GRY	20	1070	1000	109
25U Models
FM-IP55V.6625.GRY	25	1250	600	90
FM-IP55V.6825.GRY	25	1250	800	105
FM-IP55V.6025.GRY	25	1250	1000	120
34U Models
FM-IP55V.6634.GRY	34	1690	600	105
FM-IP55V.6834.GRY	34	1690	800	122
FM-IP55V.6034.GRY	34	1690	1000	139
38U Models
FM-IP55V.6638.GRY	34	1870	600	112
FM-IP55V.6838.GRY	34	1870	800	129
FM-IP55V.6038.GRY	34	1870	1000	147
42U Models
FM-IP55V.6642.GRY	42	2050	600	122
FM-IP55V.6842.GRY	42	2050	800	142
FM-IP55V.6042.GRY	42	2050	1000	162
48U Models
FM-IP55V.6648.GRY	48	2050	600	130
FM-IP55V.6848.GRY	48	2050	800	152
FM-IP55V.6048.GRY	48	2050	1000	173

800mm Wide Cabinet Dimesions
Code	U	Height	Depth	Weight
20U Series
FM-IP55V.8620.GRY	20	1070	600	76
FM-IP55V.8820.GRY	20	1070	800	95
FM-IP55V.8020.GRY	20	1070	1000	109
25U Series
FM-IP55V.8625.GRY	25	1250	600	90
FM-IP55V.8825.GRY	25	1250	800	105
FM-IP55V.8025.GRY	25	1250	1000	120
34U Series
FM-IP55V.8634.GRY	34	1690	600	105
FM-IP55V.8834.GRY	34	1690	800	122
FM-IP55V.8034.GRY	34	1690	1000	139
38U Series
FM-IP55V.8638.GRY	34	1870	600	112
FM-IP55V.8838.GRY	34	1870	800	129
FM-IP55V.8038.GRY	34	1870	1000	147
42U Series
FM-IP55V.8642.GRY	42	2050	600	122
FM-IP55V.8842.GRY	42	2050	800	142
FM-IP55V.8042.GRY	42	2050	1000	162
48U Series
FM-IP55V.8648.GRY	48	2050	600	130
FM-IP55V.8848.GRY	48	2050	800	152
FM-IP55V.8048.GRY	48	2050	1000	173

Data Sheet

Download

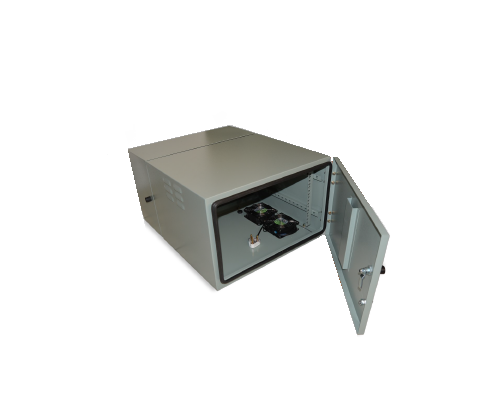

WALL MOUNT CABINETS

• The units comes in either ventilated or non-ventilated versions
• Fans are mounted on the bottom gland plate
• The door is sealed with reinforced continuous air cushioned rubber gaskets which are fitted onto a bent double lip gutter
• The manufacturing process incorporates sophisticated laser & CNC technologies prior to chemical cleaning and powder coating with a UV resistant coating
• Depth 450mm
• 4U, 6U, 9U, 12U, 15U, 20U



  SWING FRAME CABINETS

• Special tooling was developed to achieve the complicated all-in-one double bend over waterproof design
• Units are manufactured from powder coated steel and come in either ventilated or non-ventilated versions.
• Fans are mounted on the bottom gland plate
• The door is sealed with reinforced continuous air cushioned rubber gaskets which are fitted onto a bent double lip gutter.
• The manufacturing process incorporates sophisticated laser & CNC technologies prior to chemical cleaning and powder coating with a UV resistant coating


Wall mount cabinet dimensions
Code	U	Height	Vented	Weight
4U Models
FM-IP55WM4U-ODG	4	240	NO	15
FM-IP55WM4U-ODGV	4	240	YES	16
6U Models
FM-IP55WM6U-ODG	6	330	NO	17
FM-IP55WM6U-ODGV	6	330	YES	18
9U Models
FM-IP55WM9U-ODG	9	460	NO	20
FM-IP55WM9U-ODGV	9	460	YES	21
12U Models
FM-IP55WM12U-ODG	12	600	NO	25
FM-IP55WM12U-ODGV	12	600	YES	26
15U Models
FM-IP55WM15U-ODG	15	730	NO	28
FM-IP55WM15U-ODGV	15	730	YES	29
20U Models
FM-IP55WM20U-ODG	20	950	NO	34
FM-IP55WM20U-ODGV	20	950	YES	35

Swing mount cabinet dimensions
Code	U	Height	Depth	Vented	Weight
4U Models
FM-IP55WM4U.550.ODG	4	240	550	NO	20
FM-IP55WM4U.650.ODG	4	240	650	NO	23
FM-IP55WM4U.550.ODGV	4	240	550	YES	21
FM-IP55WM4U.650.ODGV	4	240	650	YES	24
6U Models
FM-IP55WM6U.550.ODG	6	330	550	NO	23
FM-IP55WM6U.650.ODG	6	330	650	NO	27
FM-IP55WM6U.550.ODGV	6	330	550	YES	24
FM-IP55WM6U.650.ODGV	6	330	650	YES	28
9U Models
FM-IP55WM9U.550.ODG	9	460	550	NO	28
FM-IP55WM9U.650.ODG	9	460	650	NO	31
FM-IP55WM9U.550.ODGV	9	460	550	YES	29
FM-IP55WM9U.650.ODGV	9	460	650	YES	32
12U Models
FM-IP55WM12U.550.ODG	12	600	550	NO	34
FM-IP55WM12U.650.ODG	12	600	650	NO	36
FM-IP55WM12U.550.ODGV	12	600	550	YES	35
FM-IP55WM12U.650.ODGV	12	600	650	YES	37
15U Models
FM-IP55WM9U.550.ODG	15	730	550	NO	38
FM-IP55WM9U.650.ODG	15	730	650	NO	42
FM-IP55WM9U.550.ODGV	15	730	550	YES	39
FM-IP55WM9U.650.ODGV	15	730	650	YES	43
20U Models
FM-IP55WM9U.550.ODG	20	950	550	NO	45
FM-IP55WM9U.650.ODG	20	950	650	NO	50
FM-IP55WM9U.550.ODGV	20	950	550	YES	46
FM-IP55WM9U.650.ODGV	20	950	650	YES	51

Data Sheet

Download

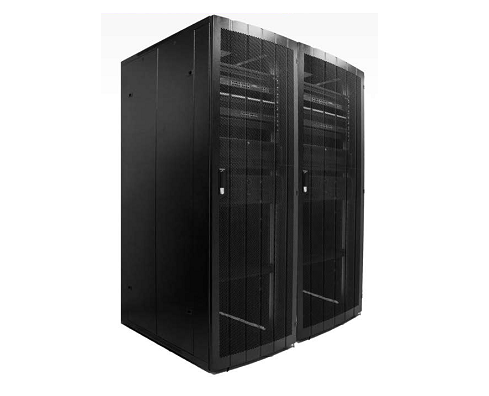

19" SERVER CABINETS FOR DATA CENTRE OR SERVER ROOM

• 12U-47U
• 600mm to 1000mm deep
• Perforated or glass doors


• Sleek 19 inch server cabinets are manufactured to industry standard heights which comprises 12U, 16U, 20U, 25U, 34U, 38U, 42U and 47U. With widths of 600 & 800, and depths of 600, 800, 1000, & 1200. Proven globally our cabinets are fully adjustable - both vertically and horizontally. Cabinets are manufactured to the international DIN41494 standards on sophisticated computerised machinery before being powder coated to the DIN 34946 standard.



FRAME

• Easy Assembly - bolted. Powder coated.
• Standard Colour Black

  PANELS

• 1.2 c.r.m.s Phosphated and powder coated.
• Standard colour Black

  DOOR

• Shatterproof smoky grey glass, set in safety surround,
• with open of key, lock, or swing lever handle.
• Also available in a perforated steel finish
• Powder coating available in Black and Grey finish
