FTTX PRODUCTS

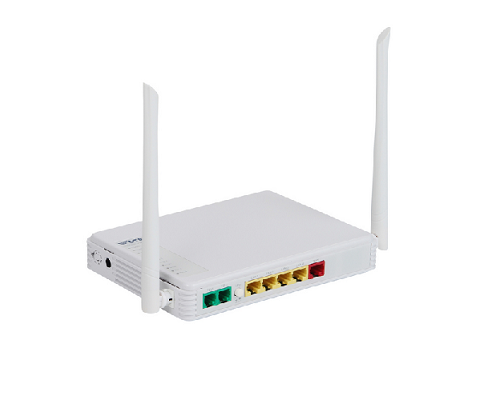

4-Port Managed residential gateway, w/4*10/100/1000Tx,
1*Gigabit Combo (1*10/100/1000TX RJ45, or 1*100/1000 SFP Slot for SM or MM)
- WAN Port (Type) 100/1000Mbps (COMBO/TP)
- LAN Port (Type) 4 x 10/100/1000Mbps (RJ-45)
- VoIP FXS Ports x 2
- WiFi module 802.11 b/g/n/ac
- WiFi Frequency 2.4GHz / 5GHz
- Antenna 2 x Fixed External, 2T2R MIMO
- Dimension WxDxH 229 x 149 x 30.8mm
- Temperature °C (Humidity) Operating °C: 0~50, Storage °C: -20~60, (5%~90%)
- Cable Tray Option (HES-FCT)
- MAC Address Table 1K
- Jumbo Frame 9K Bytes
- WiFi WPS
- Data Encryption 64/128bit WEP,WPA,WPA2
- MAC ACL
- Firewall
- IPv6 IPv4/IPv6 Dual Stack*
- SSID 4
- VoIP SIP. Codec (G.711a/u, G.723, G.726, G.729a/b)
- VLAN 802.1q
- VLAN Group 64
- QoS Port Based, 802.1p, ToS/DSCP
- QoS Priority Queue 4
- Bandwidth Control
- NAT/Bridge Hybrid Mode
- DHCP Server, Client, Auto-Provisioning
- IPTV Multicast IGMP Snooping v1/v2, Proxy, Fast Leave (Ideal for Video streaming)
- DMZ Host
- Management Web , SNMP, CLI
- RADIUS support
- Packet & URL Filtering
- SNTP support
- UPnP & DDNS
- CWMP TR-069 through optional software upgrade
- Firmware Upgrade FTP/TFTP/HTTP
- Power Down Trap
- 2-Year Warranty *1 year on power supply
Data Sheet
Download

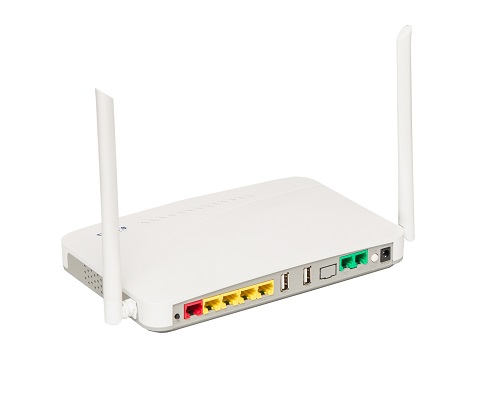

4-Port Managed residential gateway, w/4*10/100/1000Tx,
1*Gigabit Combo (1*10/100/1000TX RJ45, or 1*100/1000 SFP Slot for SM or MM)
- WAN Port (Type) 100/1000Mbps (COMBO/TP)
- LAN Port (Type) 4 x 10/100/1000Mbps (RJ-45)
- VoIP FXS Ports x 2
- WiFi module 802.11 b/g/n/ac
- WiFi Frequency 2.4GHz / 5GHz
- Antenna 2 x Fixed External, 2T2R MIMO
- CATV RF Receiver (RF model only)
- Dimension WxDxH 180 x 130 x 30mm
- Temperature °C (Humidity) Operating °C: 0~50, Storage °C: -20~60, (5%~90%)
- Cable Tray Option (HES-FCT-S)
- MAC Address Table 1K
- Jumbo Frame 9K Bytes
- WiFi WPS
- Data Encryption 64/128bit WEP,WPA,WPA2
- MAC ACL
- Firewall
- IPv6 IPv4/IPv6 Dual Stack*
- SSID 4
- VoIP SIP. Codec (G.711a/u, G.723, G.726, G.729a/b)
- VLAN 802.1q
- VLAN Group 16
- QoS Port Based, 802.1p, ToS/DSCP
- QoS Priority Queue 4
- Bandwidth Control
- NAT/Bridge Hybrid Mode
- DHCP Server, Client, Auto-Provisioning
- IPTV Multicast IGMP Snooping v1/v2, Proxy, Fast Leave (Ideal for Video streaming)
- DMZ Host
- Management Web , SNMP, CLI
- RADIUS support
- Packet & URL Filtering
- SNTP support
- UPnP & DDNS
- CWMP TR-069, TR-104, TR-098 through optional software upgrade
- Firmware Upgrade FTP/TFTP/HTTP
- Power Down Trap
- 2-Year Warranty *1 year on power supply
Data Sheet
Download

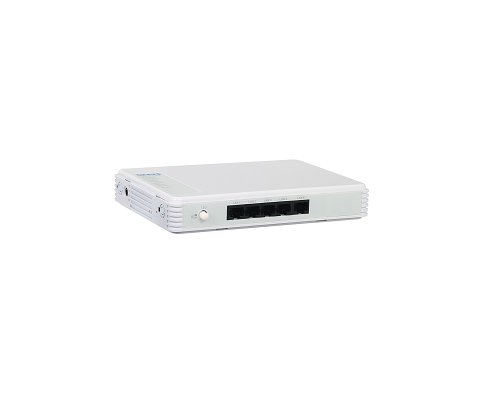

6-Port Management Gigabit Ethernet CPE Switch
5 x 10/100/1000Mbps RJ-45 + 1 x 1000Mbps SFP or 100/1000Mbps SFP or 10/100/1000Mbps RJ-45 Uplink Managed Fibre CPE Switch
- LAN Port:
- 5 x 10/100/1000Mbps (RJ-45)
- WAN Port:
- 1 x 1000Mbps (SFP), 1 x 100/1000Mbps (SFP), or
- 1 x 10/100/1000Mbps (RJ-45)
- Web Management
- Telnet CLI
- SNMP v1/v2c
- DHCP Client and Auto-Provision
- SNMP Power-Down Trap
- FTP/TFTP Firmware Upgrade
- Network Time Protocol (NTP)
- Text Based Configuration
- Bandwidth Control
- SFP SFF-8472 DDMI (Digital Diagnostic Management Interface)
- Port Mirroring
- Tag-based and Port Based VLAN
- Q-in-Q Double Tag
- IEEE802.1q Tag Based VLAN
- Support 128 VLAN Groups
- QoS Based on P-bit, VLAN & DSCP
- Priority Queues: 4 Queues
- IGMP Snooping v1/v2
- Store and Forward Switching Mechanism
- Auto Crossover for MDI/MDI-X in TP port
- Auto Negotiation in TP port
- Half/Full Duplex Mode Operation
- Jumbo Frame: 9K bytes
- MAC Address Table: 2K
- Non-Blocking Switching Fabric: 12Gbps
- VLAN ID: 4K
- Priority Queues: 4 Queues
- Main Unit:
- Size: 180 x 130 x 30mm (WxDxH)
- Weight: 0.32kg

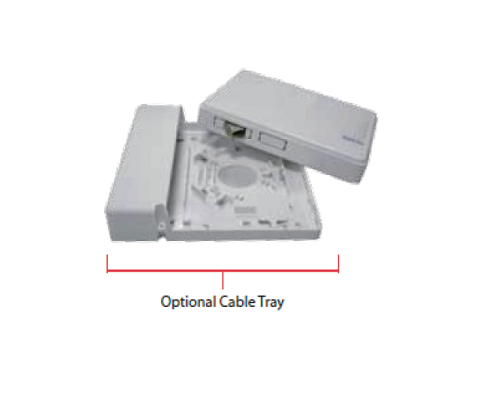

- Main Unit with Cable Tray:
- Size: 180 x 180 x 42mm (WxDxH)
Data Sheet
Download

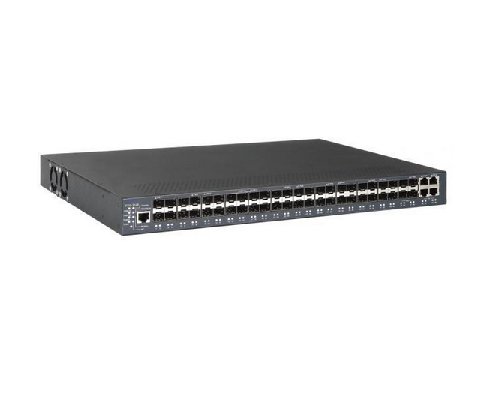

48-Port Managed Full Gigabit Ethernet Switch, w/44*10/100/1000Tx , L2 4*100/1000Fx, 220VAC or 48VDC Power Input
- Lan ports:44 x 100/1000Mbps (SFP) Fibre slots
- Uplink: 4 x 100/1000Mbps Combo (SFP + RJ-45)
- Store and Forward Switching Mechanism
- MAC Address Table: 16K
- Non-Blocking Switching Fabric: 96Gbps
- VLAN Groups: 2K VLAN Groups
- SNTP, Daylight Saving
- DHCP Client and Auto-Provision
- Text Based Configuration
- FTP/TFTP/HTTP Firmware and Configuration Upgrade
- Web, SNMP, SSHv2 and Telnet Console CLI Management
- Layer Link Discovery Protocol (LLDP)
- SFP SFF-8472 DDMI (Digital Diagnostic Management Interface)
- Port Mirroring
- ACL Based on Physical port, IEEE802.1p, VID, TOS/DSCP, Ethertype, Protocol Type and L4 Port
- Weighted Round-Robin (WRR)/Strict-Priority Queuing (SPQ) Scheduling Algorithm
- Policy and Shaping Rate Limit
- Link Aggregation (LACP)
- Static Port Trunking
- Up to 16 Aggregation Groups, 8 Ports per Group
- Static Multicasting
- IGMP v1/v2/v3 Snooping
- IGMP Fast Leave
- IGMP Filtering via Filtering Profile
- MLD v1/v2 Snooping
- Multicast Channel Limitations per Port
- Multicast VLAN Registration (MVR) **
- Rapid Spanning Tree Protocol (RSTP)
- Broadcast Storm Control
- Unknown Unicast/Multicast Flood Control
- Port based Access Network Control and Authentication
- RADIUS Client
- DHCP Snooping
- DHCP Relay Agent with Option 82
- IP Source Guard
- DHCP Server Trust Port
- Loop Detection
- Port Isolation
- Input AC : 100VAC-240VAC
- Input DC : 48VDC
- (FOS-3148-BAT-P)
- Input DC : 12VDC
- Power Max. Consumption : 166W (in charging state)
Data Sheet
Download

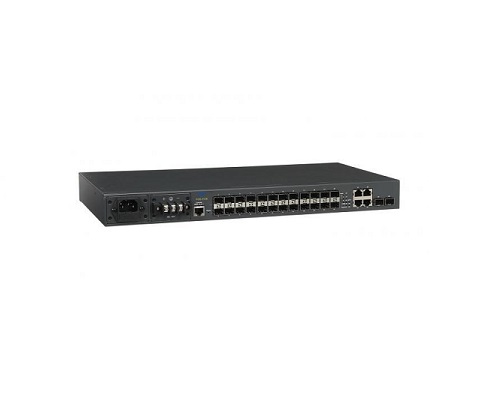

24-Port Managed Full Gigabit Ethernet Switch, 2 x 10Gb/s Uplink ports (SFP+), w/20*10/100/1000Tx , L2 4*100/1000Fx, 220VAC or 48VDC Power Input
- Uplink Port:
- 2 x 10Gbps (SFP+)
- LAN Port:
- 4 x 100/1000Mbps Combo (SFP + RJ-45) ,
- 20 x 100/1000Mbps (SFP)
- Web Management
- SNMP v1/v2c
- Text based Configuration
- FTP/TFTP/HTTP firmware and configuration upgrade
- DHCP client and auto provision
- Event Log, Syslog
- SNMP Power Down Trap
- Link Layer Discovery Protocol (LLDP)
- SFP SFF-8472 DDMI (Digital Diagnostic Management Interface)
- Port Mirroring
- ACL Based on Physical port, IEEE802.1p, VID, TOS/DSCP, Ethertype, Protocol Type and L4 Port
- SNTP, Daylight Saving
- Store and Forward Switching Mechanism
- MAC Address Table: 16K
- Non-Blocking Switching Fabric: 88Gbps
- Memory Buffer: 1536K Bytes
- VLAN Groups: 2K VLAN Groups
- Priority Queues: 8 Queues
- Jumbo Frame: 9K Bytes
- Auto-Cross Over for MDI/MDI-X in TP Ports
- Auto-Negotiation in TP Ports
- Full/Half Duplex Mode Operation
- Weighted Round-Robin (WRR)/Strict-Priority Queuing (SPQ) Scheduling Algorithm
- Policy and Shaping Rate limit
- Ling Aggregation (LACP)
- Static Port Trunking
- Up to 13 Aggregation Groups, 8 Ports per Group
- Static Multicasting
- IGMP v1/v2/v3 Snooping
- IGMP Fast Leave
- IGMP Filtering via Filtering Profile
- MLD v1/v2 Snooping
- Multicast Channel Limitations per Port
- Multicast VLAN Registration (MVR) **
- Spanning Tree Protocol (STP)
- Rapid Spanning Tree Protocol (RSTP)
- Input AC : 100VAC-240VAC
- Input DC : 48VDC
- Power Max. Consumption : 33W
Data Sheet
Download

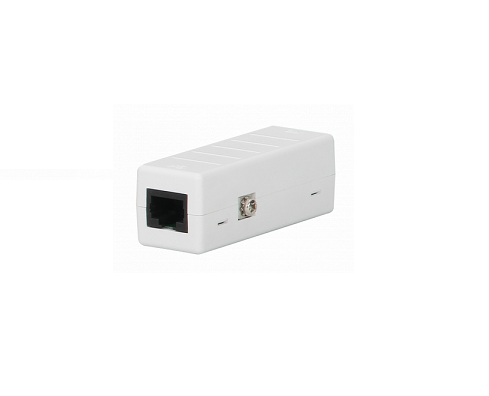

1-Line 10/100/1000Mbps(RJ-45)
- Disperse lightning flows: With LPB-101G-P securely installed allowing lightning to be conducted into ground.
- Easy to install: Easy connection for cables terminated with RJ-45, protects equipment from lightning strikes.
- Compatible with PoE: LPB-101G-P are fully compatible with industrial standard Power over Ethernet (PoE) devices and Ethernet networks, providing protection to both Ethernet data pairs as well as PoE DC power feed.
- Comply with 10/700us 6KV common mode lightning surge test
(ground wire must be properly installed)
- Provide one-line Ethernet Lighting protection
- Support Fast/Gigabit Ethernet connection
- One port RJ-45 for PoE Ethernet signal input
- One port RJ-45 for PoE Ethernet signal output
- Active device :
- Size : 70 x 25 x 25mm (WxDxH)
- Weight : 0.03 KG
