Fusion Splicers/OTDR Testers/Optical Power Meters/VFL

CORE TO CORE

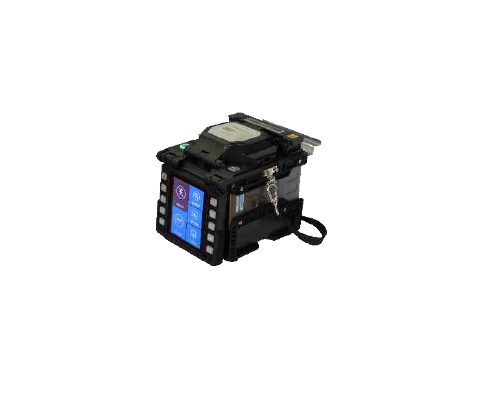

COMWAY C10

CORE TO CORE ALIGNMENT SYSTEM


  • SPLICING 6 sec
  • Heating 12 sec
  • Fast Boot Technology
  • Fibre Identification - Auto Splicing
  • Wind, Rain, Dust and Shock resistant
  • Ultra Narrow Ceramic V-groove
  • Real Fibre Core Visualisation
  • Simple Light Source - no mirror and no flat cable
  • Large Battery Capacity - Up to 300 splices and heating

  • SPECIFICATIONS


  • DIMENSIONS AND WEIGHT

  • 156(D)x135(W)x149(H)
  • 2kg or 2.5kg with battery

  • FIBRE ALIGNMENT

  • 6 motor core alignment
  • SPLICE MODE
  • Single Fibre

  • FIBRE DIAMETER

  • Cladding Diameter 80-150uM
  • Coating Diameter 100-1000uM

  • CLEAVE LENGTH

  • 250uM Cladding Diameter 8-16mm
  • Over 250uM Cladding Diameter 16mm

  • SPLICE PROGRAMS

  • 100

  • SPLICING CYCLE TIME

  • 6 sec.[SM Fast] Program
  • 12 sec.[Auto] Program

  • SPLICE DATA STORAGE

  • 3000

  • LOSS ESTIMATION

  • Provided

Data Sheet

Download

FTTX

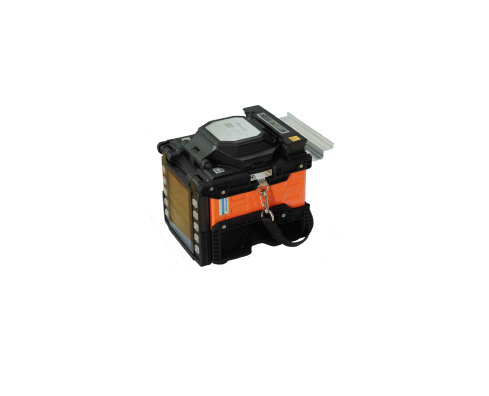

COMWAY C6

STANDARD FTTX - HIGH PRECISION PAS ALIGNMENT SYSTEM


  • SPLICING 6 sec
  • Heating 20 sec
  • Fast Boot Technology
  • Easy to change electrode and clamp
  • Wind, Rain, Dust and Shock resistant
  • High brightness display, easy to view in sunlight
  • Ceramic fibre presser
  • Simple Light Source - no mirror and no flat cable
  • Large Battery Capacity - Up to 200 splices and heating

  • SPECIFICATIONS


  • DIMENSIONS AND WEIGHT

  • 156(D)x135(W)x149(H)
  • 1.8kg or 2.1kg with battery

  • FIBRE ALIGNMENT

  • High precision PAS alignment
  • SPLICE MODE
  • Single Fibre

  • FIBRE DIAMETER

  • Cladding Diameter 80-150uM
  • Coating Diameter 100-1000uM

  • CLEAVE LENGTH

  • 250uM Cladding Diameter 8-16mm
  • Over 250uM Cladding Diameter 16mm

  • SPLICE PROGRAMS

  • 100

  • SPLICING CYCLE TIME

  • 6 sec.[SM Fast] Program
  • 12 sec.[Auto] Program

  • SPLICE DATA STORAGE

  • 3000

  • LOSS ESTIMATION

  • Provided

Data Sheet

Download

OTDR TESTER

DEVISER AE3100

HIGH PERFORMANCE OTDR FOR FTTx AND RFoG NETWORKS


  • 7”, 800x480 LCD touchscreen
  • Excellent short-distance performance with 0.8m event dead zone and 4m attenuation dead zone
  • Broad dynamic range coverage (28 - 39 dB)
  • Minimum 5cm resolution
  • Intelligent analysis of events
  • "FiberPass" intelligent analysis feature
  • Multiple options for your measurement needs, including: VFL, power meter, light source, and optical fibre microscope
  • Complete user data ports: support LAN, USB, SD, & more

  • WAVELENGTH

  • 1310/1550
  • CP-1: 1310/1550/1625
  • CP-2: 1310/1550/1650
  • CP-3: 1310/1550/1490

    DISTANCE

  • 100m, 400m, 1.5km, 3km, 6km, 12km, 25km, 50km, 100km, 200km, 400km

  • SAMPLING RESOLUTION(m)

  • 0.05 ~ 12.8

  • SAMPLING POINTS

  • 256000

  • LOSS THRESHOLD

  • 0.01dB

  • LOSS RESOLUTION

  • 0.001 dB

    STORAGE

  • >10,000 OTDR traces, transferrable to USB storage or PC

Data Sheet

Download

POWER METER

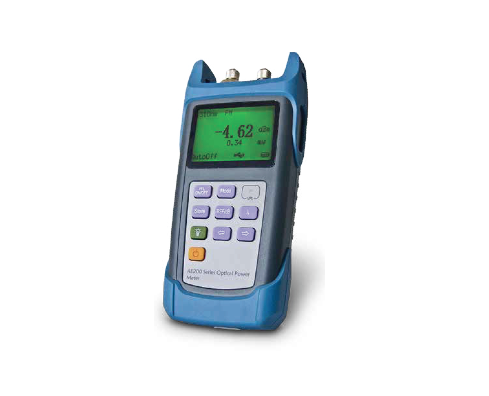

DEVISER AE200

HIGH PERFORMANCE OPTICAL POWER METER


  • Installation and maintenance of optical distribution networksincluding CATV and FTTx
  • VFL
  • Auto shutdown and self-calibration function
  • USB Interface and toolbox software

  • ACCURACY

  • AE200A: ±0.23dB(±5%)
  • AE200B:AE220:AE260: ±0.17dB(±3%)

    WAVELENGTH

  • 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1610nm

  • RESOLUTION

  • 0.01dBm, mW, μW, nW

  • 650nm VFL

  • Power 1 mW ( 3, 5, 10 mW optional)

  • CONNECTOR

  • FC/SC/ST adjustable

  • BATTERY LIFE

  • >70 Hours (Backlight Off)

    DIMENSIONS

  • 185mm x 85mm x 45mm

Data Sheet

Download
