PHPoC
PHP on Chip for DIY IoT Projects
New era - Internet of Things (IoT) is here. There are a lot of the smart things have been created such as Nest Learning Thermostat, Philips Hue-Smart Home Lighting, Apple Watch and HomeKit, Google Glass, The Air Quality Egg, Amazon Echo, etc. There may be some as great ideas as them in your mind, but you are not ready or hesitate to do it because of concerning about hardware design or your programming skill. Stop worrying about it. PHPoC helps you to quickly realize your ideas and rapidly deploy your application prototyping. PHPoC lets you develop your application on embedded devices as easily as on your computer. With supported libraries, you can do anything you can imagine with some simple lines of codes without worrying about hardware design. Let PHPoC arouse your passion and inspire you to realize your imagination.
Fibre Utility Networks supplies the following PHPoC products:
- PHPoC Black programmable IoT board
- PHPoC Blue programmable IoT board

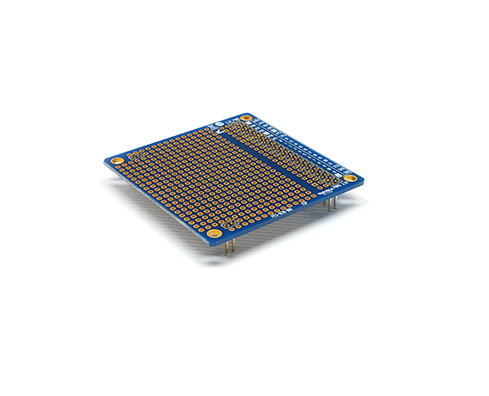

- PHPoC Prototyping board
- PPHoC Breadboard
- 4-Port relay board: Terminal screw type
- 4-Port input board: Terminal screw type

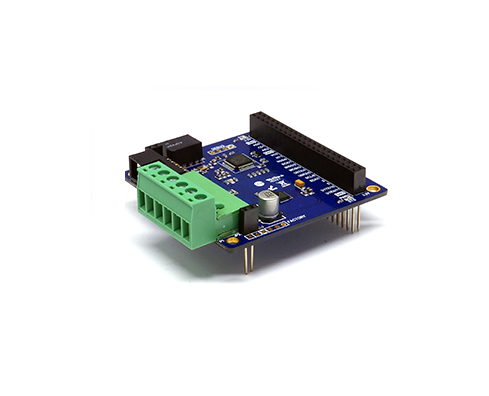

- Stepper motor control: Terminal screw type
- Mikrobus expansion board - On request
PROGRAMMABLE IOT BOARDS

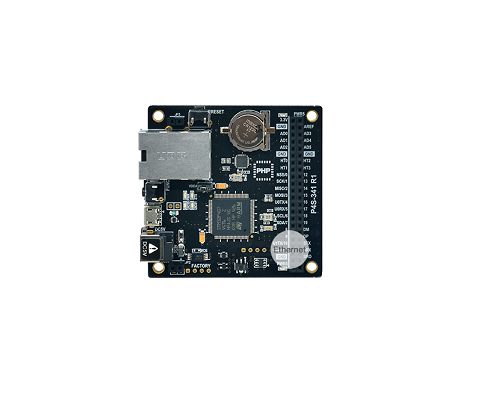

Ethernet Programmable IoT Board
- PHPoC (PHP on Chip) interpreter embedded
- Uploading and debugging codes via USB
- 10Base-T/100Base-TX Ethernet (RJ45)
- 10 x digital input/output port
- 14 x sharing port (Digital Input/Output, SPI, I2C, UART)
- 6 x analogue input port
- HTTP/SSH/Websocket server
- Web page customization available (accessible with smart devices)
- 5V over USB or external AC Adapter
- -40C to 85C operational temperature
Info
Contact

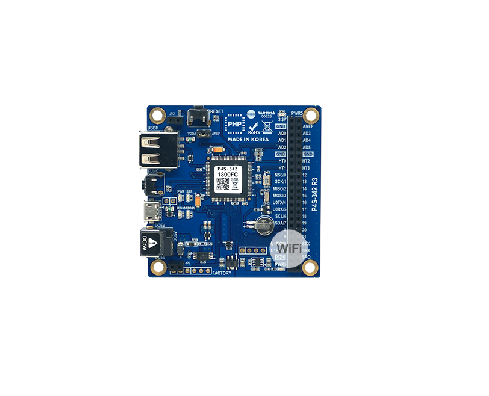

Ethernet Programmable IoT Board
- PHPoC (PHP on Chip) interpreter embedded
- Uploading and debugging codes via USB
- - IEEE 802.11b/g (USB Wireless LAN adapter required)
- 10 x digital input/output port
- 14 x sharing port (Digital Input/Output, SPI, I2C, UART)
- 6 x analogue input port
- HTTP/SSH/Websocket server
- Web page customization available (accessible with smart devices)
- 5V over USB or external AC Adapter
- -40C to 85C operational temperature
Info
Contact

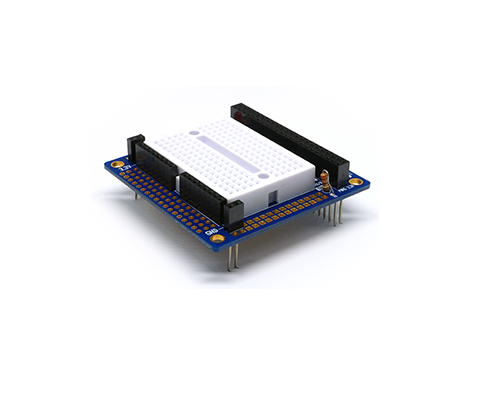

PHPoC Bread Board makes it easy to design custom circuits. Users can use the bread board to quickly test circuit ideas without having to solder. Users can also solder some components on the prototyping area to create projects.
Info
Contact

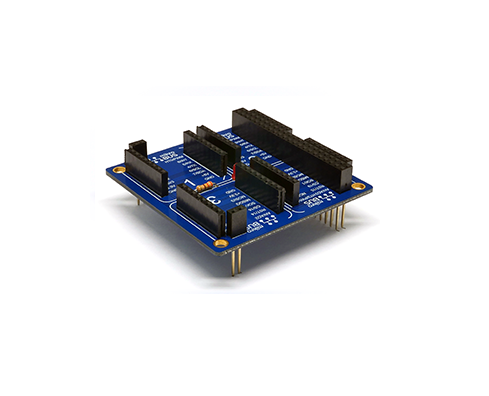

mikroBUS™ Expansion Board provides four mikroBUS™ sockets, allowing easy connection of PHPoC to mikroBUS™ sensors and actuators.
Info
Contact

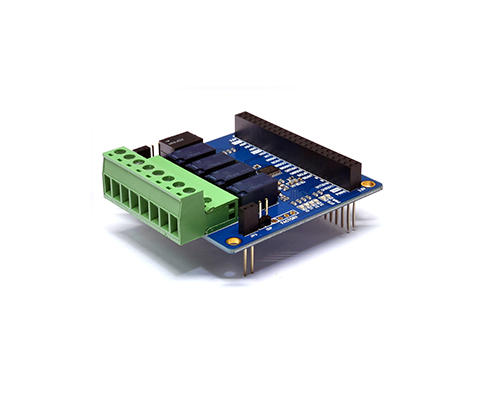

4-Port Relay Board is a PHPoC smart expansion board for relays.
Supported terminal blocks are for relay output as vertical or horizontal type.
Some devices can be turned On or Off with this board.
Boards can be stacked together up to a maximum of 14
Info
Contact

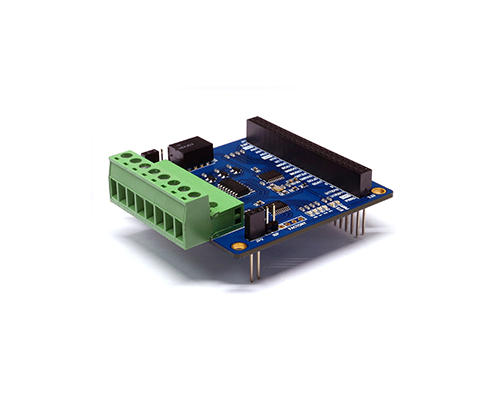

4-Port Digital Input Board is a PHPoC smart expansion board for WET Contact or Dry Contact.
This expansion board is installed with a terminal block which can be stackable with other boards.
Supported terminal blocks are for relay output as vertical or horizontal type.
Boards can be stacked together up to a maximum of 14
